The main features
Ultra-low stray light: the first time in five ten thousandths of stray light indicators on the economy UV-Vis spectrophotometer.
Excellent stability: excellent selection, stable and durable.
◇ Advanced Stepping Motor Drive Technology
Grating motor direct drive, replace the conventional screw drive mechanism, and transmission do not need to do regular maintenance to ensure that the instrument for a long time maintenance-free work.
◇ Full sealed monochromator structure
Sealed structure and optical mirror surfaces are coated with a SiO2 film, double protection to ensure the instrument's optical parts from the gas and the environment.
◇ carefully selected light source
Tungsten lamp, deuterium lamp selection of world-renowned brands, to ensure the light of long-term stable and reliable.
The ◇ machine the whole mold production
Various components used in all the anti-corrosion material, greatly improving the instrument weather resistance.
Flexible scalability: hardware to facilitate the demolition, the flexibility to upgrade software.
◇ rich extensions
T60 series has a dedicated function slot, by inserting a different function card pesticide residue measurement, and function of DNA / protein measurements and a full band scan cards to meet the different needs of various user
◇ open application platform
T60 series to open the sample compartment design, easy application and experimentation of a variety of accessories.
◇ powerful application software
Through the communication interface connected to the computer, using powerful software accessories can greatly extend the stand-alone function, the measurement of high-grade UV instruments and data processing functions.
◇ variety of output forms
With the printer linked to the support of micro-printer, the HP series inkjet, laser printers, user-friendly to use.
◇ convenient online upgrade system
The user can at any time via the Internet to download the latest program of the instrument, the instrument upgrade.
The overall design of humanity: a high degree of automation and easy maintenance.
And ◇ fast scanning speed
Wavelength shift speed up 7000nm/min wavelength scanning speed of up to 2500nm/min greatly improve user productivity.
The ◇ automatic operation
T6 products with automatic wavelength positioning, wrapping lights, Automatic wavelength calibration, and automatic sample cell switching function.
◇ Built-in storage racks cuvette
Set cell holder on one side of the sample chamber, the use of user-friendly.
To ◇ automatic lamp life detection system
Automatic lamp life detection system, to ensure the reliability of the instrument work.
◇ easily washable dust filter
Using washable dust filter designed to ensure the internal cleaning of instruments, ease of maintenance.
◇ easy disassembly
Instruments at the bottom of the locking mechanism and the knob behind the institutions, expansion and maintenance of user-friendly.
Powerful and convenient software analysis assistant - UVWin5 .0
The ◇ four conventional measurement capabilities
Photometry, quantitative determination, spectral scanning, time scanning
◇ innovative three-dimensional spectrum function
Can realize the multi-spectral combination are displayed as three-dimensional spectra;
Three-dimensional spectrum of light, colored, layered effects processing;
Peak detection function;
Can spectra Print.
◇ customized measurement package for all walks of life
Genetic analysis-DNA protein measurement package
Drug analysis - national pharmacopoeia package
Food Analysis - Food Analysis Software Package
Environmental Analysis - Environmental Analysis Software Package
Pesticide - A pesticide residues Packages
◇ software to follow GLP guidelines
Multi-User Management: Allows administrators to create users and groups with different permissions; each user login software need to enter the appropriate username and password; measurement data for the average user
Logging function: automatically record the user's operation; log files are more reliable database format; administrator can log classification of access and other treatments.
Binary file to save: to save measurement data format uses a binary format; binary format greatly enhance the level of confidentiality of data; also saves disk space.
Quality control functions: to monitor the measurement data according to user settings; beyond the control range of the data system will display the message, color-coded or automatically re-measurement.
Report output functions: the function of sharing data with other systems; the measurement results are saved in Microsoft Word format, Microsoft Excel format, the text file format; personalized settings on the report format; advance preview of the report on the results of the printing .
===================================================
主要特點
超低的雜散光：國內首次在經濟型紫外可見分光光度計上實現萬分之五的雜散光指標。
出色的穩定性：選材精良，穩定耐用。
◇ 采用先進的步進電機細分驅動技術
電機直接驅動光柵，取代傳統的絲桿傳動機構，不需要再對傳動機構做常規維護，保證了儀器長時間免維護工作。
◇ 全密封的單色器結構
全密封結構以及所有光學鏡面表面均涂有SiO2保護膜，雙重保護保證儀器的光學件不受氣體和環境的影響。
◇ 精心選擇的光源
鎢燈、氘燈選用世界知名品牌，保證光源的長期穩定可靠。
◇ 整機采用全模具化生產
各零部件全部采用抗腐蝕材料，大大提高儀器耐候性。
靈活的擴展性：硬件方便拆卸，軟件靈活升級。
◇ 豐富的擴展功能
T60系列產品設有專用的功能卡槽，通過插入不同的功能卡可方便的完成農藥殘留測量、DNA/蛋白質測量及全波段掃描卡等功能滿足各種用戶的不同需求
◇ 開放的應用平臺
T60系列產品開放式的樣品倉設計，可方便的進行各種附件應用和實驗。
◇ 強大的應用軟件
通過通訊接口與計算機連接，使用功能強大的軟件附件，可極大地?cái)U(kuò)展單機功能，實現中高檔紫外儀器的測量和數據處理功能。
◇ 多樣的輸出形式
可與打印機相聯，支持微型打印機、HP系列噴墨、激光打印機，方便用戶的使用。
◇ 方便的在線升級系統
用戶可通過互聯網隨時下載儀器最新程序，對儀器進行升級。
人性化的整體設計：自動化程度高，維護方便。
◇ 極快的掃描速度
波長移動速度可達7000nm/min，波長掃描速度可達2500nm/min，大大提高用戶工作效率。
◇ 全自動操作
T6系列產品具備自動波長定位、自動換燈、自動波長校準、自動樣品池切換功能。
◇ 內置的比色皿存放架
在樣品室一側設置了樣品池架，方便用戶的使用。
◇ 自動的燈壽命檢測系統
自動燈壽命檢測系統，確保儀器工作的可靠性。
◇ 方便的可清洗防塵過濾網
采用可清洗防塵過濾網設計，確保儀器內部清潔，便于維護。
◇ 簡便的拆卸方式
儀器底部的鎖緊機構和背后的旋鈕機構，方便用戶的擴展和維護。
強大而便捷的軟件分析助手——UVWin5.0
◇ 四大常規測量功能
光度測量、定量測定、光譜掃描、時間掃描
◇ 推陳出新的三維譜圖功能
可實現多條光譜組合顯示為三維譜圖；
可對三維譜圖進行光照、著色、分層等效果處理；
可實現峰值檢出功能；
可進行譜圖打印。
◇ 針對各行各業定制的測量軟件包
基因分析－DNA蛋白質測量軟件包
藥物分析－國家藥典軟件包
食品分析－食品分析軟件包
環境分析－環境分析軟件包
農藥分析－農藥殘留軟件包
◇ 軟件遵循GLP規范
多用戶管理：允許管理員創建擁有不同權限的用戶和組；每個用戶登陸軟件需要輸入相應的帳號和密碼；針對一般用戶可實現測量數據
日志記錄功能：自動記錄用戶的操作；日志文件采用更為可靠的數據庫格式保存；管理員可對日志進行分類查閱和其他處理。
二進制文件保存：測量數據的保存格式采用二進制格式；二進制格式大大加強了數據的保密程度；同時也節省了磁盤空間。
質量控制功能：可根據用戶的設置對測量數據進行監控；超出控制范圍的數據系統將會顯示提示信息、進行顏色標記或自動重新測量。
報告輸出功能：可實現與其他系統共享數據的功能；可將測量結果保存為Microsoft Word格式、Microsoft Excel格式、文本文件格式；可對報告格式進行個性化的設置；可提前預覽結果報告的打印效果。

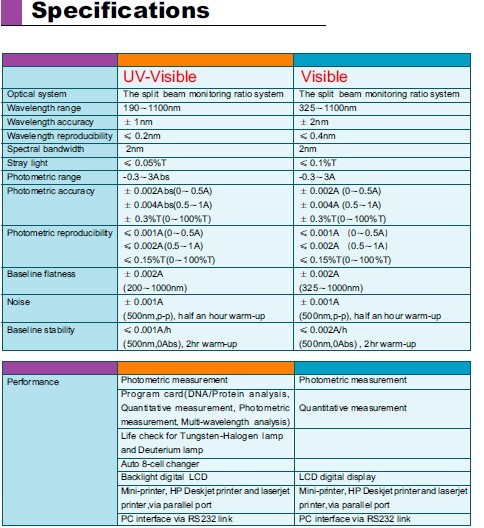

技術參數
|
項 目 |
ETT-T60-UV(紫外/可見） |
ETT-T60（可見） |
| 光學系統 |
雙光束比例監測 |
雙光束比例監測 |
| 波長范圍 |
190～1100nm |
325～1100nm |
| 波長準確度 |
±1nm |
±2nm |
| 波長重復性 |
≤0.2nm |
≤0.4nm |
| 光譜帶寬 |
2nm |
2nm |
| 雜散光 |
≤0.05%T |
≤0.1%T |
| 光度范圍 |
-0.3～3A |
-0.3～3A |
| 光度準確度 |
±0.002A(0～0.5A)
±0.004A(0.5～1A)
±0.3%T(0～100%T) |
±0.002A(0～0.5A)
±0.004A(0.5～1A)
±0.3%T(0～100%T) |
| 光度重復性 |
≤0.001A（0～0.5A）
≤0.002A（0.5～1A）
≤0.15%T(0～100%T) |
≤0.001A（0～0.5A）
≤0.002A（0.5～1A）
≤0.15%T(0～100%T) |
| 基線平直度 |
±0.002A
(200～1000nm) |
±0.002A
(325～1000nm) |
| 噪聲 |
±0.001A
（500nm，P-P）開機預熱半小時后 |
±0.001A
（500nm，P-P）開機預熱半小時后 |
| 基線漂移 |
≤0.001A/h
(500nm，0A) 開機預熱2小時后 |
≤0.002A/h
(500nm，0A) 開機預熱2小時后 |
| 儀器功能 |
光度測量功能
功能擴展卡（定量測定、DNA/蛋白質測定、蔬菜農藥殘留測定等）
具有鎢燈、氘燈點燈時間記錄功能
支持8聯池的操作
炫彩藍色LCD顯示
支持微型打印機、HP系列噴墨， 激光打印機
可與PC聯機 |
光度測量功能
定量測定功能
段式液晶顯示
支持微型打印機、HP系列噴墨、 激光打印機
可與PC聯機
|
| 標準配置 |
名稱 |
數量 |
| 紫外可見分光光度計主機 |
1臺 |
| 合格證 |
1張 |
| 石英比色皿 |
2只 |
| 定量測量功能卡 |
1套 |
| 組合工具 |
1套 |
| 保險管(2A) |
2只 |
| 電源線 |
1根 |
| 使用說明書 |
1本 |
| 裝箱單 |
1張 | |
