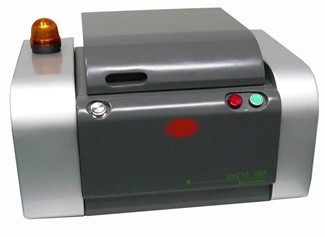

2.2 儀器特點 |
|
1、安全性能 |
|
三重射線保護（軟件、硬件、迷宮設計），全面確保操作人員人身安全與意外操作帶來的輻射傷害。 |
|
2、硬件性能 |
|
1、大樣品倉設計，適應于大樣品的檢測，部分取代手持式XRF功能；
2、先進的模塊化設計理念，保證了儀器后續的高擴展性；
3、探測器采用美國原廠高端器件。 |
|
3、軟件性能 |
|
1、最新優化的V6.0分析軟件可根據樣品材質、形狀和大小自動設定光管功率，既能延長光管使用壽命又能充分發揮探測器性能，大幅提高測量精度；
2、業內唯一提供開放式工作曲線標定平臺,可為每家用戶量身定做最佳的有害物質檢測和控制方案；
3、融合了一系列先進的光譜處理方法，包括FFT（快速傅立葉變換濾波）、精準的背景扣除方法、微商自動尋峰和Quasi-Newton(準牛頓)優化算法等；
4、國際領先的XRF分析軟件，融合了包括經驗系數法、基本參數法（FP法）、理論α系數法等多種經典分析方法，全面保證測試數據的準確性。 |
|
4、其它特點 |
|
1、可根據用戶要求自行定制測試報告輸出格式（Excel、PDF等），符合工廠多種統計及格式要求。
2、測試數據的分級管理，進一步加強測試數據的嚴肅性及質量品控的可靠性。
3、可以提供六價鉻定量測試技術與附件、鍍層測厚和多元素分析軟件（用戶需另行購置）。
4、多語種軟件界面可供選擇。 |
|
2.3 儀器技術指標 |
|
技 術 參 數 |
|
1、 儀器尺寸：640(W)x474(D)x412 (H)mm |
|
2、 樣品腔尺寸：
小樣品腔：300*300*100mm；
大樣品腔：無限制，小于30公斤 |
|
3、 重量：約50Kg |
|
4、 工作環境溫度：溫度15—30℃ |
|
5、 工作環境相對濕度：≤85%（不結露） |
|
6、 可分析元素范圍 ： K-U |
|
7、 最低檢出限：Cd/Cr/Hg/Br≤2 ppm ,Pb≤5ppm |
|
8、 測量時間 ：200-400s ( 系統自動調整 ) |
|
9、 最佳分辨率：149±5eV |
|
10、 輸入電源：AC 220V～240V，50Hz |
|
11、 額定功率 ：350W |
三、儀器硬件主體配置
|
3.1 探測系統 |
|
1、探測器
類型：電制冷Si-PIN探測器
制造商：美國Amptek公司生產
(采用PIN結構的高性能電致冷半導體探測器)
Be窗厚度：1mil
DC5V電源供電，USB超高速信號輸出，
致冷方式：采用2級半導體致冷
探測器晶體厚度：500μm
探測靈敏面積：6mm2
集成MCA多道脈沖分析系統，2048道(最高8192道)
分辨率能達到149±5eV；
|
|
|
3.2 X光管 |
圖 片 |
|
制 造 商：丹東科維
電 壓: 0 ~ 50 kV
最大電流: 1.0 mA
最大功率: 50 W
燈絲電壓: 2.0V
燈絲電流: 1.7 A
射線取出角：12°
靶 材：Mo
Be窗厚度：0.5mm
|
|
|
3.3 高壓電源 |
圖 片 |
|
生 產 商：美國Spellman公司生產
輸入電壓: DC +24V±10%
輸入電流：4.0A（最大）
輸出電壓: 0 -50KV & 1mA
最大功率：50W
電壓調整率：0.01% （從空載到滿載）
電流調整率：0.01% （從空載到滿載）
紋波系數：0.1% （P-P值），8小時穩定性：0.05%
|
|
|
3.4 微動平臺與高分辨率CCD |
|
|
載物測試平臺，配有微調裝置，可方便的實現檢測物的定位與檢測區域的調整。
120萬像素的CCD攝像頭，可有效的實時觀察測試區域狀況，并拍下物料照片，作為檢測報告的組成部分。 |
|
|
3.5 大樣品腔 |
|
|
小樣品腔尺寸(閉倉門測試)：300*300*100mm
大樣品腔尺寸(開倉門測試)：無限制，部分取代手持式功能。 |
|
|
3.6 散熱系統 |
|
高效三維散熱系統，大幅度提供儀器的可靠性、穩定性 |
|
3.7 防輻射安全系統 |
|
三重射線防護系統（軟件、硬件、迷宮式設計） |
四、儀器軟件配置
|
4.1 儀器操作軟件功能 |
|
1、功能 |
|
1、可以輕松應對歐盟ROHS、EN-71、美國HR4040、 ASTM963及其他控制元素的相應環保指
令 。根據客戶實際情況還可以對銅合金及金屬材料進行成分分析，取代了傳統的火花直讀光譜儀；
2、元素分析范圍：從鉀(K)到鈾(U)，ppm量級；
3、分析方法：綜合應用經驗系數法、基本參數法等；
4、分析報告：多種語言格式(簡體中文 繁體中文 英文等)及文檔格式報告，如Excel、
PDF等，預設標準模板，用戶還可以自定義模板格式，所有文檔可自由打印和保存；
5、數據自動保存：所有樣品測試后的數據均會自動保存，測試結果具有可追溯性；
6、穩定性自檢功能：可即時對儀器當前穩定性進行自動檢測；
7、操作界面多語種:英語、簡體中文、繁體中文等。 |
|
2、特點： |
|
1、預置多條工作曲線，涵蓋金屬、PE、PVC、鋁材、焊錫、銅合金等基體類型可滿足用
戶常規測量的要求；
2、提供開放式工作曲線平臺，用戶可以自由配置工作曲線以及任意添加標樣數據，以滿
足更高測試度的要求，或適應環保指令的后期擴展；
3、人性化的軟件界面與操作方法，使用獨有圖形顯示技術，既方便又直觀；結合大量操作經驗優化操作步驟，極大方便用戶；
4、精確的數據處理方式：以基本參數法為依據精確配置的濾光片系統大幅提高峰背比，
結合一系列先進的光譜處理方法，極大提高特征譜線的檢出精度，以此為依據用經驗系數
法再做進一步校正，使測試數據達到極高的精密度和準確度；
5、數據管理：由數據庫支持的專業化報表生成、查詢打印、操作員分級授權等功能極大方便企業管理；
6、完善的安全連鎖功能：配合硬件電路的防護措施，在不安全的操作發生時自動切斷X
射線確保操作員不受傷害;
7、智能化軟件保護，避免不當操作對光譜儀的損傷，延長儀器使用壽命。 |
|
4.2 RoHS 分析軟件 |
|
1、針對現有環保指令的五種有害元素、無鹵要求及玩具指令中的有害元素，加裝光路優化系統后可定性測試Cl元素；
2、在開放式工作曲線平臺的支持下，用戶可以從容應對各種環保指令測試的擴展。 |
五、儀器的外圍設備
|
5.1 計算機（標配） |
|
CPU ：P4計算機
內 存：1G
硬盤容量：160G
顯 示 器：17寸液晶 |
|
5.2 噴墨打印機（標配） |
|
彩色噴墨印機 |
|
六、儀器的其它項目配置 |
圖片 |
|
樣品杯 2個 標配
測試薄膜 50片 標配
保險管 五個 標配 |
|
|
七、儀器的標準物質配置 |
圖片 |
|
歐盟標準ERM®-EC680K 一個 標配
歐盟標準ERM®-EC681K 一個 標配
銀校準樣品 一個 標配 |
|
|
八、隨機配備的技術資料 |
|
保 修 卡 一份 標配
合 格 證 一份 標配
儀器操作手冊 一本 標配
輻射安全檢測報告 一份 標配 |
|
|
|
|
|
九、技術支持及售后服務 |
|
1、 為客戶免費提供操作培訓,培訓期一至三天。（需體現階段性培訓時間）
2、 整機保修二年，全國聯網售后保修,并終身提供技術服務支持。
3、 保修期內的非人為因素儀器損壞，免費維修。標準響應時間：4小時響應，上門服務時間48小時，24小時技術支持熱線。
4、 免費提供軟件升級服務。 |
|
十、全面提供應對各種環保指令的檢測及控制方案 |
|
根據用戶需求及受控物料的具體特征，結合ＸＲＦ分析的技術特點，將儀器分析手段納入用戶的品管體系，為用戶提供最佳檢測方案，協助建立物料允收標準；并對特殊物料提供風險分析的方法。 |
===================================================
|
2.2 Instrument characteristics |
|
2.2.1 Safety performance |
|
It has triple-ray protection system, and newly designed further ensure personal safety of operating staff and avoid the radiation injury brought by accidental operations, and at the same time, the internal structures are optimized in a large scale. |
|
2.2.2 Hardware performance |
|
1. The instrument has the big sample cavity, and it replace the hand help XRF type partly;
2. Advanced modularized concept; |
|
2.2.3 Software performance |
|
1.The latest optimized V6.0 analysis software is able to set light tube power according to sample texture, shape and size, and it can prolong the service life of light tube, fully develop detector performance and greatly improve the measuring accuracy；
2. The only one provides open work curve calibration platform in the industry, and the optimum scheme for detection and control of hazardous materials and be designed according to the concrete conditions of each user.；
3.The instrument integrates a series advanced spectrum processing method such as FFT (Fast Foourier Transform), precise background correction, differential coefficient automatic peak-seeking and Quasi-Newton optimization algorithm and so on；
4. The international leading XRF analysis software integrates many classic analysis methods including empirical coefficient method, fundamental parameter method, theoretical alpha coefficient method etc. and fully ensures the accuracy of test data. |
|
2.2.4 Other characteristics |
|
1.The users can define the output format（Excel and PDF etc.）of test report by themselves according to their requirements, which is in accordance with the requirements for multiple statistics and formats of plants.
2. Classification management of test data further strengthens the seriousness of test data and reliability of quality control.
3. It can provide hexavalent chromium testing technology and appendix, measurement of coating thickness and multielement analysis software. (users need pay it alone)
4. The software interfaces in multiple languages are selectable. |
|
2.3 Technical indexes of instrument |
|
Technical parameters |
|
1. Instrument dimensions：640(W)x474(D)x412 (H)mm |
|
2. Dimension of sample cavity：
Small sample cavity：300×300×100mm；
Large sample cavity：absence of restriction and less than 30 kg. |
|
3 Weight ：about 48kg |
|
4. Working conditions temperature： from 15℃ to 30℃ |
|
5. Relative humidity of working conditions：≤85%（non-condensing） |
|
6. Range of elements can be analyzed： K-U |
|
7. Lowest detection limit：Cd/Cr/Hg/Br≤2 ppm ,Pb≤5ppm |
|
8. Measuring time：200-400s (automatic adjustment by the system ) |
|
9. Optimum resolution：149±5eV |
|
10. Input power：AC 220V ± 10%，50Hz |
|
11. Rated power：350W |
|
|
III. Main configuration of instrument hardware
|
3.1 Detection system |
|
1. Detector
Type：electric refrigeration Si-PIN detector(high performance electric refrigeration semiconductor detector with PIN structure adopted)
Specifications:
Thickness of Be membrane: 1mil
DC5V power supply, USB ultra-high-speed signal output,
An area of 25 square crystal, signal processing, steady and rapid;
Can achieve the best resolution of 149eV;
|
|
|
3.2 X-RAY TUBE |
Picture |
|
Voltage: 0 ~ 50 kV
Maximum current: 1.0 mA
Maximum power: 50 W
Filament voltage: 2.0V @ 50 kV/1mA
Filament current: 1.7 A
Ray extraction angle：12°
Target material：Mo
Be window thickness：0.5mm
|
|
|
3.3 High voltage power supply |
Picture |
|
Input voltage: DC +24V±10%
Input current：4.0A（max）
Output voltage: 0 -50Kv @ 1mA
Maximum power：50W
Current regulation：0.01% （from no load to full load）
Ripple coefficient,：0.1% （P-P value）
Stability over 8 hours：0.05%
|
|
|
3.4 Micro-platform and high-resolution CCD |
Picture |
|
Loading test platform with fine-tuning device, the implementation can be easily detected with the positioning of objects and adjust test region.
1.3 million pixel CCD camera, which can effectively test the real-time observation of the regional situation and took photographs
|
|
|
3.5 big sample cavity |
Picture |
|
Small sample cavity：300×300×100mm；
Large sample cavity：Absence of restriction, and replace the hand help function partly.
|
|
|
3.6 cooling system |
|
|
Special high efficiency tridimensional cooling system improves the reliability of instruments greatly. |
|
|
3.7 Radiation protection safety system |
|
Triple protection system (software, hardware, labyrinth design) |
IV. Instrument software configuration
|
4.1 Operation software functions of software |
|
1.Function |
|
1.Precise tests can be conducted for the five hazardous elements（Pb，Cd，Hg，Br，Cr）specified in RoHS Directive；
2.Range of elements analysis：from K to U，ppm magnitude；
3.Analysis method： comprehensive application empirical coefficient and fundamental parameter method；
4.Analysis report：the instrument support multiple languages format ( simplified Chinese, traditional Chinese and English) and document format reports, such as Excel and PDF etc., and standard templates are preset and the users can define the template formats by themselves; moreover, all of the documents can be printed and saved； 5.Automatic data storage：the test data of all the samples will be saved automatically and the test results are traceable；
6.Self-checking function of stability：real time self-checking function can be carried out as for current stability of the instruments；
7.the operation interface supports multiple languages such as English, simplified Chinese and traditional Chinese etc. |
|
2. Characteristic： |
|
1.Many work curves preset, covering metal, PE, PVC, aluminum-magnesium, solder and copper alloy and other matrix types, can meet the requirements of the users for routine measurements；
2.Open work curve platform is provided and the users can configure work curves and add standard sample data freely, so as to meet the requirements for higher test reliability or adapt to subsequent extension of environmental protection directives；
3.Humanization operation interface and operation method and application of unique graphical display technics are convenient and intuitionistic；And operating procedures are optimized through combination of a great amount of experience, which facilitates the users greatly.
4.Filter system configured precisely based on fundamental parameter method improves the peak to background ratio greatly, and the detection precision of characteristic spectral lines are greatly improved combined with a series of advanced spectra processing method, and the empirical coefficient method is used for further correction based on it, so the precision and accuracy are extremely high；
5.Data management：specialized report form generation, query and print and hierarchical authorization for operators and other functions facilitate enterprise management greatly；
6.Perfect safety interlocking function：cooperated with the protection measures of hardware circuit, X ray will be cut off automatically when the unsafe operation occurs to ensure the operators’ safety;
7. Intelligent software protection avoids the damage to spectrometer caused by incorrect operation and prolongs service life of the instrument. |
|
4.2 RoHS analysis software |
|
1. In order to cope with current environmental protection directive﹑halogen-free requirements﹑Toy Directive of hazardous elements, we load a system of optimal optical path.
2. The users can deal with the extension of environmental protection directive test unhurriedly supported by the open work curve platform. |
V. Peripheral equipment of instrument
|
5.1 Computer（standard configuration） |
|
Manufacture: P4 computer
Memory：1G
Hard disk volume：160G
Monitor：Above 17-inch LCD (liquid crystal display) monitor |
|
5.2 Inkjet printer（standard configuration） |
|
Color ink jet printer |
|
VI. Configuration of other items of instrument |
Picture |
|
Sample cup 2 standard configuration
Test film 50 pieces standard configuration
Protective tube 5 standard configuration
|
|
|
VII. Configuration of reference materials of instrument |
Picture |
|
European standard ERM®-EC680K one standard configuration
European standard ERM®-EC681K one standard configuration
Silver calibration sample one standard configuration |
|
|
VIII. Technical data equipped with the instrument |
|
Warranty card one standard configuration
Certificate one standard configuration
Operation manual of instrument one standard configuration
Radiation safety inspection report one standard configuration |
|
IX. Technical support and after sale service |
|
1、 Provides free of charge training of 1 to 3 days for the users（phased training time shall be embodied）
2、 The whole machine is guaranteed for one year and after-sales services are carried out in nationwide network, and the technical service support is provided for the whole life.
3、 During guarantee period, the instrument is repaired free of charge if it is not damaged by human factor. Standard response time: response time of 4 hours, door-to-door service time of 48 hours and 24-hour technical support hotline.
4. Provide software upgrade service free of charge. |
|
X. Full provision of services for detection and control schemes dealing with all kinds of environmental protection directive |
|
According to users’ requirements and concrete characteristics of materials under control and combining the technical features of ＸＲＦ analysis, the instrument analysis means included in quality management system of the users so as to provide the users with optimum measuring scheme and assist to establish acceptability criterion for materials; And the risk analysis method is provided for special materials. | |
