創新：結果緊湊，垂直模式的腐蝕試驗設計。
分400L 和1000L 基本型和增強型 四個型號。
新的緊湊型和功能設計
Salt Spray Tests
鹽霧試驗
Condensation Tests
凝結試驗
執行標準：
|
Basic models |
Enhanced models |
|
50180 method A1/A2/A3
AS 2331 method 3
ASTM B117
ASTM B287
ASTM B368
ASTM D1735
ASTM D2247
ASTM G85 A1
BS 3900/F12
BS 3900/F4
BS 3900/F9
BS 5466 Part 1/2/3 |
BS 7479
BS EN 60068-2-11
BS EN ISO 7253
BS 2011 Part 2.1
D17 1058
DEF 1053 METH 24
EF 1053 METH 36
DIN 40046
DIN 50 017-KK
DIN 50021
DIN 50907
DIN 50958
DIN 53167 |
DIN 55991
ECCA T8
FLTM BI 103-01
GM4298P
GM4465P
IEC 68-2-11
JIS H 8502 Meth1/2/3
JIS Z 2371
JNS 30.16.03
ISO 11503
ISO 1456
ISO 3768 |
ISO 3769
ISO 3770
ISO 4541
ISO 7253
ISO 9227
MIL-STD-202
NFT 30-077
NFX 41-002
RES.30.CT.117
SIS 184 190
VG 95 210 |
ASTM G43
ASTM G85 A3
DEF 1053 METH 36
RES.30.CT.119
DIN 50907
DRY
MIL-STD-810
UNI 9399
UNI 9590
UNICHIM 652
UNICHIM 741
PROHESION
ASTM G85 /A5 |
功能：
鹽霧試驗
冷凝水試驗
循環腐蝕試驗
特點：

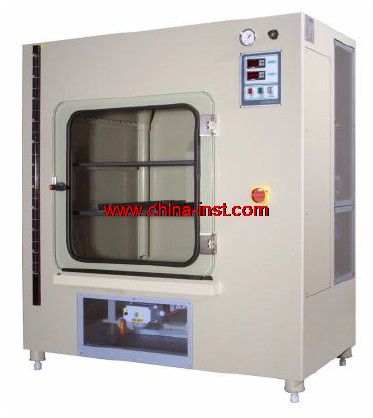

Chamber structure is overall 10mm thick Polypropylene. Option in PPS plastics to meet CSA flame test. Test chamber is insulated with a double wall. Access to the test chamber is made through a window glass door.
室結構整體10mm厚的聚丙烯。選擇在PPS塑料符合CSA火焰試驗。試驗室與雙壁絕緣。進入測試室通過窗玻璃門。
Control panel and all necessary control devices are on the right side in ergonomic position. The Salt solution storage tank is on the left side.
控制面板和所有必要的控制裝置是正確的符合人體工程學的位置。鹽溶液貯槽是左邊。
The electrical board is completely enclosed in a dedicated zone: next to it we find the electro-valves, humidifier and salt solution dosing pump zone. Each part is of easy access for simple and fast maintenance.
電路板是完全封閉在一個專門的區域：它旁邊發現電磁閥，加濕器和鹽溶液計量泵區。每個部分是簡單和快速維修方便。
技術規格：
|
Features / Models |
Basic |
Enhanced |
|
Strong structure overall 10mm thick polypropylene construction with built-in salt solution reservoir. |
yes |
yes |
|
Glass door for easy viewing inside test chamber, top cover is peaked to prevent dripping on samples. |
yes |
yes |
|
Complete Spray nozzle made in plastic material, suitable for ISO 9227 AASS and CASS tests. |
yes |
yes |
|
Fog diffuser in the centre of the test chamber allows fog uniformity. |
yes |
yes |
|
Humidifying tower with automatic water level restoring system and temperature-controlled water heater. |
yes |
yes |
|
Peristaltic pump for salt solution dosage. |
yes |
yes |
|
Ergonomic control panel. |
yes |
yes |
|
Pressure regulator for control of nozzle air pressure. |
yes |
yes |
|
Pressure gauge for display of nozzle air pressure. |
yes |
no |
|
Digital temperature controller of test chamber temperature. |
yes |
no |
|
Timer to set test duration, programmable up to 9999 hours, with stopping of all functions at test end. |
yes |
no |
|
Pilot lamp to signal lack of salt solution. |
yes |
no |
|
Microprocessor control panel. Test status continuously displayed on a large LCD with 4 lines display for test parameters and program menu. |
no |
yes |
|
Free programming, up to 15 different test programs, input via keyboard with soft keys and tactile feedback. |
no |
yes |
|
Self-diagnostic, routine service reminders including warning messages and safety shut down. |
no |
yes |
|
Complete test report: chamber test temperature, humidifier temperature, air nozzle pressure, dosing pump RPH are periodically measured and saved in the controller memory, and by simply pressing a key you can print a complete report of the test. |
no |
yes |
|
Data transfer via RS232-C serial interface. |
no |
yes |
|
Air and water filter to be installed on supply lines. |
yes |
yes |
|
4 bars and 3 standard specimen holders supplied. |
yes |
yes |
|
Technical data / Models |
400 l Basic / Enhanced |
1000 l Basic / Enhanced. |
|
Physical dimensions |
|
Overall dimensions (mm) |
1320 x 780 x 1450 (W x D x H) |
1640 x 880 x 1800 (W x D x H) |
|
Test chamber internal dimensions (without dome area) (mm) |
800 x 700 x 800 (W x D x H) |
1100 x 800 x 1140 (W x D x H) |
|
Test chamber internal volume (without dome area) (litres) |
448 |
1000 |
|
Weight (Kg) |
168 |
300 |
|
Salt solution reservoir capacity (litres) |
110 |
260 |
|
Electrical supply |
|
Type of connection |
1/N/PE |
|
Voltage (V) |
230 +- 10 % 50 Hz |
|
Current consumption (A) |
9 |
14 |
|
Water supply for humidifier |
|
Type of water |
demineralised |
|
Water pressure (bar) |
2-4 |
|
Water consumption (approximate) (litres/day) |
3 |
|
Air supply |
|
Type of air |
Filtered, oil free |
|
Air pressure (bar) |
4-6 |
|
Air consumption (approximate) (Nm3/h) |
5-8 |
|
Temperature range |
|
Test chamber temperature range (°C) |
Ambient to 50 |
|
Humidifier temperature range (°C) |
Ambient to 70 |
|
Supplied accessories |
|
Rods |
4 |
6 |
|
Test panel racks |
3 |
4 |
|
Air filter and pipe (4 m) |
yes |
循環測試選項
Enhanced model control panel allows easy programming of cyclic test combining: Salt spray, Water condensation, Dry off and Ambient condition. To perform cycling the test chamber must be completed with the following optional parts:
增強模型的控制面板允許循環試驗結合易于編程：鹽霧，冷凝水，干燥和環境條件。執行循環試驗室必須完成下列可選部分：
Option for Dry Corrosion, Scab Corrosion cycle. An air heater is installed to heat purging air before introducing it in the test chamber and a Titanium panel on the bottom of test chamber turns a flooded bottom into a dry bottom. Only a dry chamber bottom allows fast drying of the samples.
干腐蝕選項，赤霉病腐蝕周期。空氣加熱器安裝到熱瀉空氣之前，將其在試驗室和試驗室底部的鈦板將淹沒底成干底。只有一個干燥室底部允許快速干燥的樣品。
Option for ASTM G85-98 annex 5 Prohesion. In addition to parts installed for dry corrosion a bypass is installed on the humidifier to meet standard requirements with respect to fog production.
ASTM g85-98附件5 Prohesion測試選項。除了安裝干腐蝕旁路部分安裝在加濕器對霧的標準化生產。
Option for ASTM G85-98 annex 4 salt/SO2 spray testing. An external SO2 dosing system is supplied and a gas diffusing device is installed in the test chamber.
選擇ASTM g85-98附件4鹽／SO2噴霧試驗。一個外部的SO2加藥系統提供和氣體擴散裝置安裝在試驗室。
|
